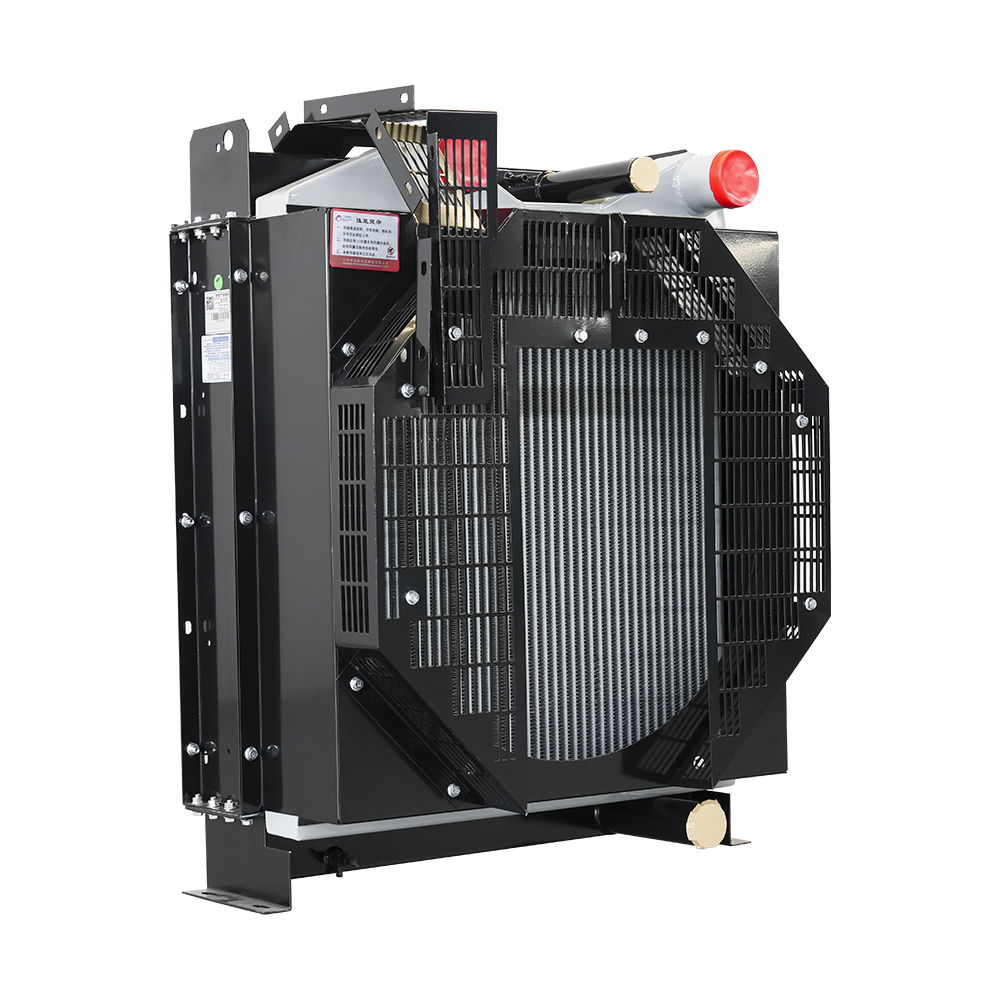

Apta Cummins Generator Radiator

Apta Cummins Generator Radiatores Fabri

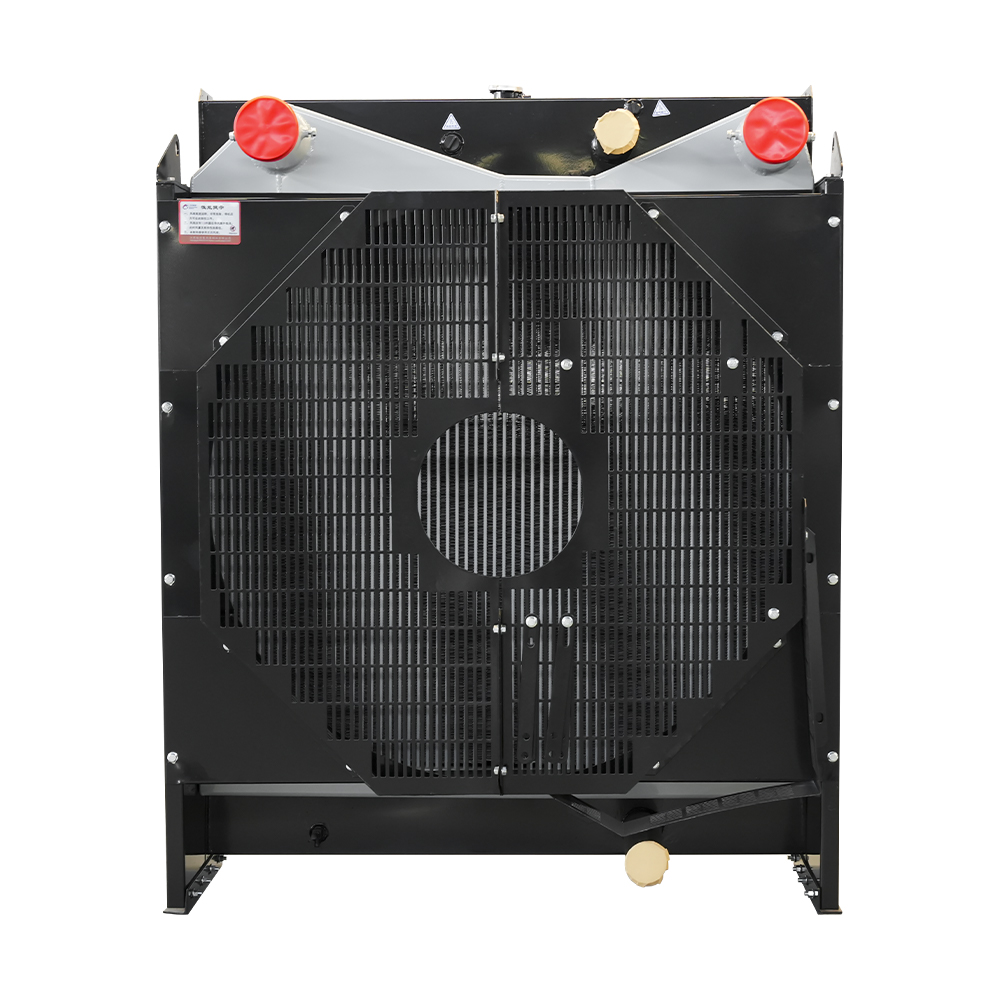

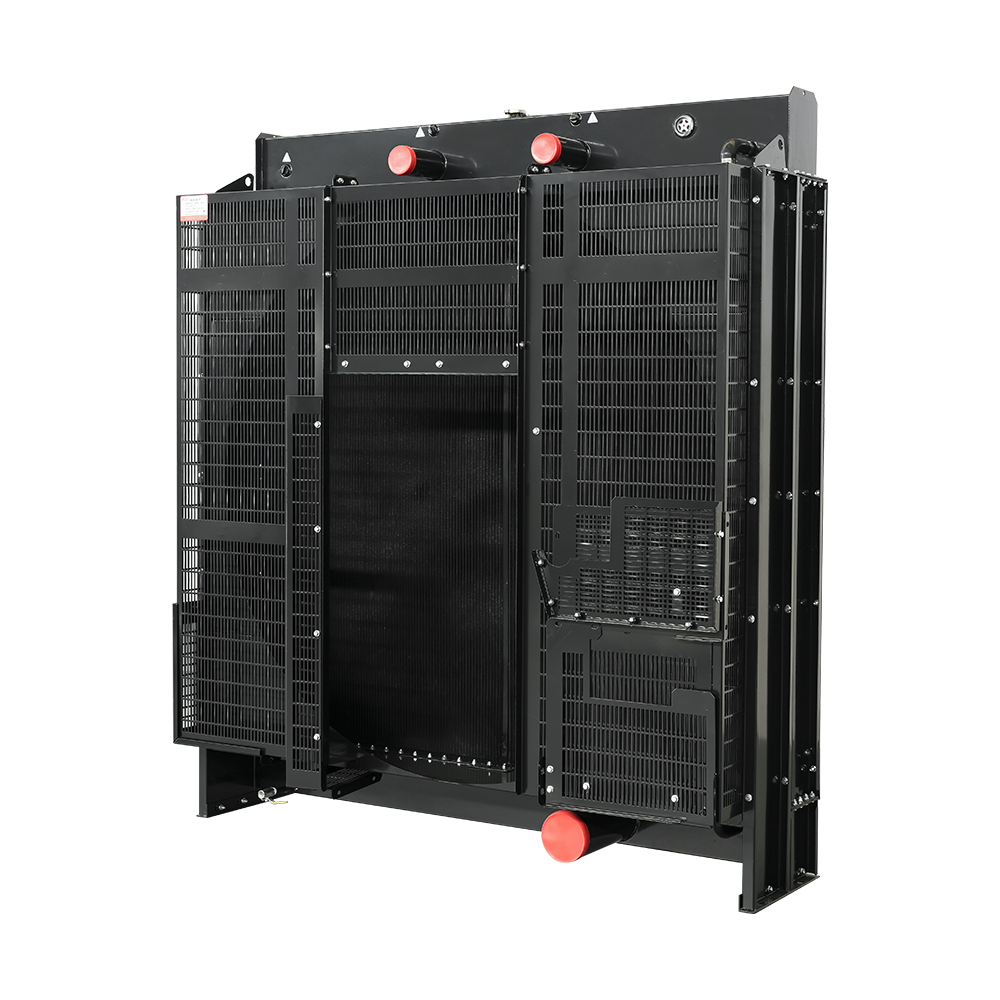

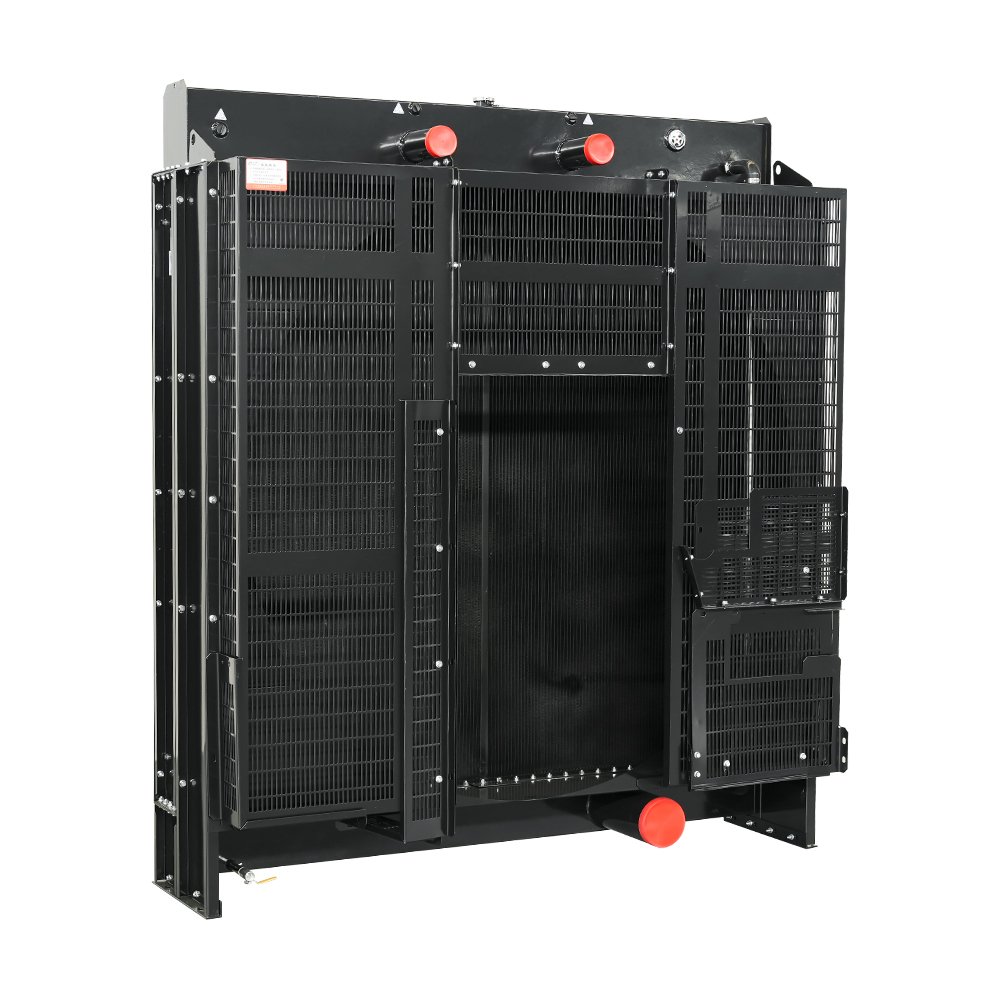

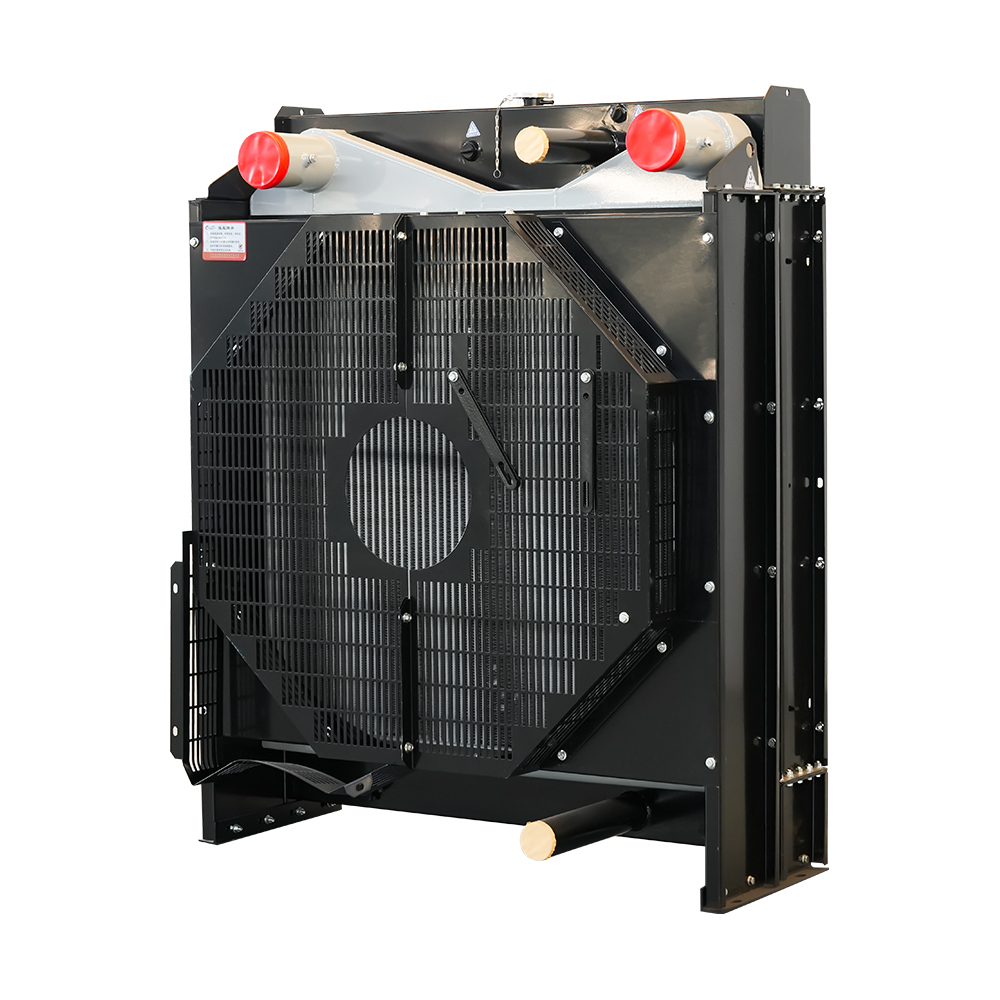

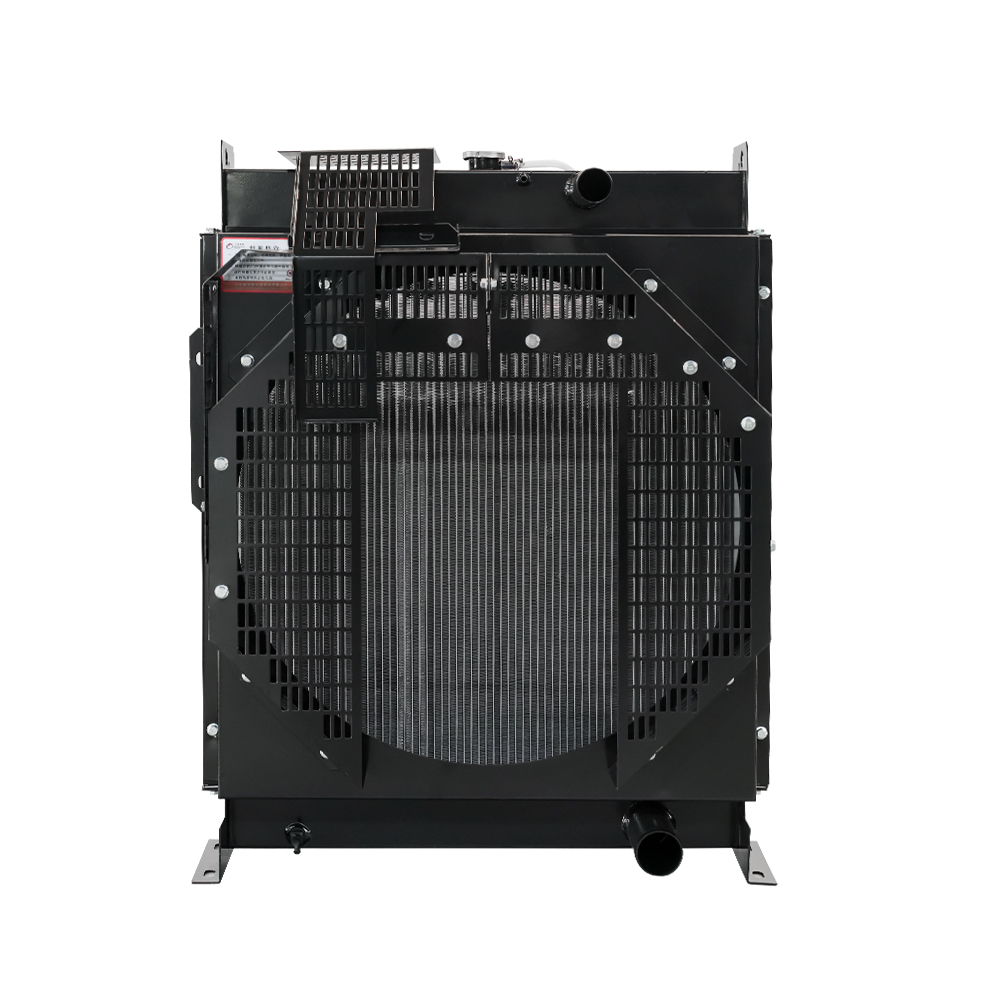

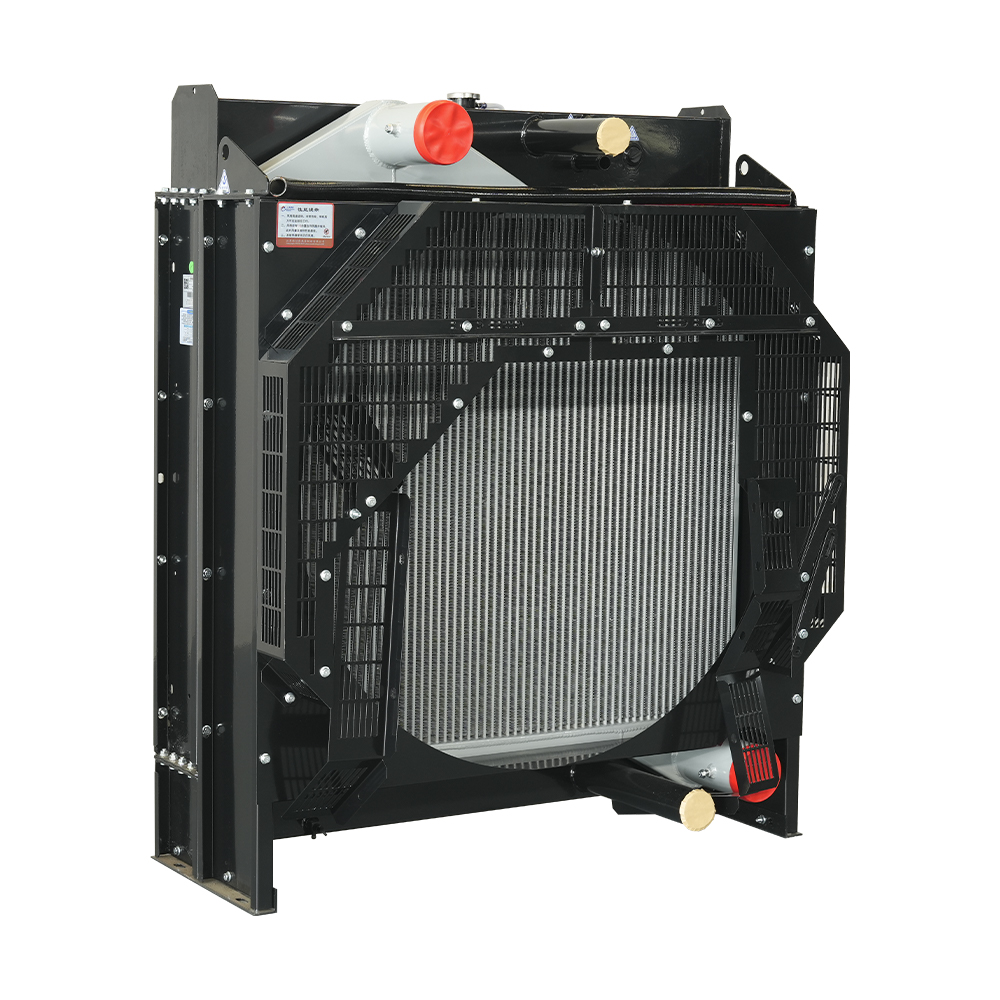

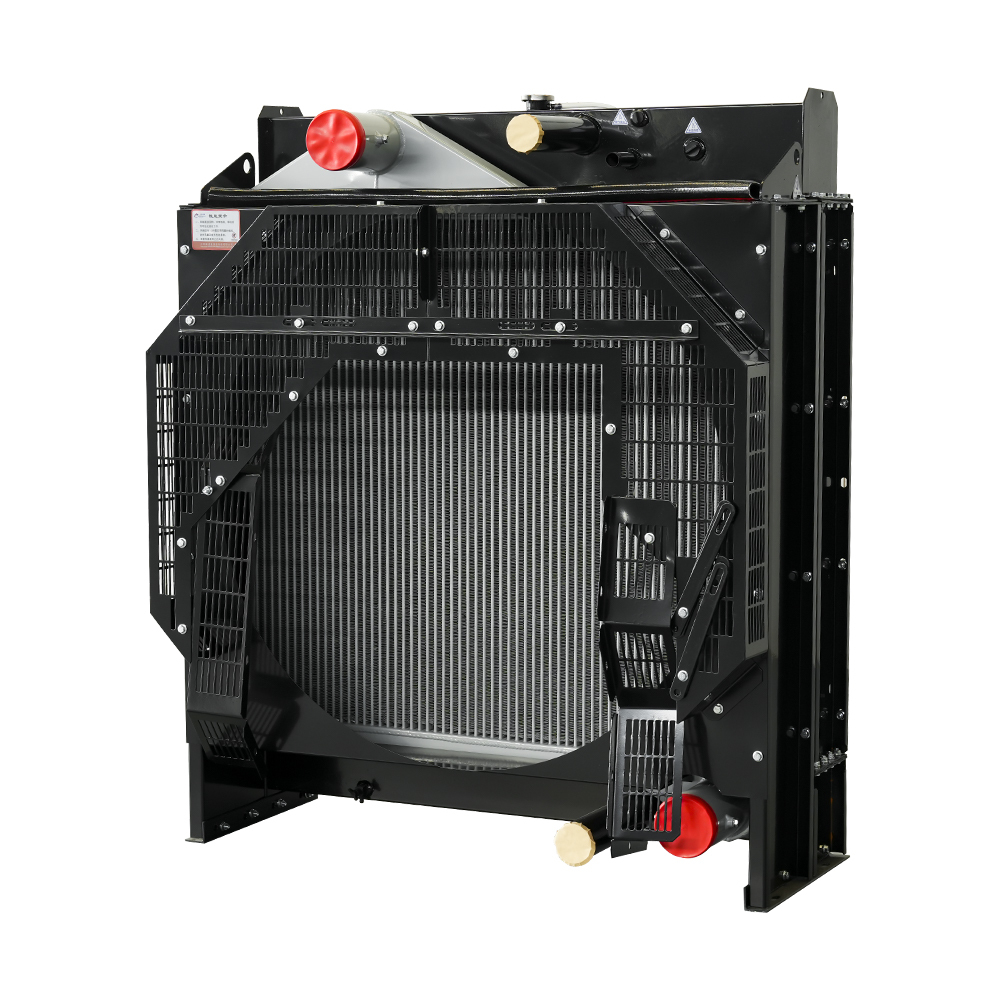

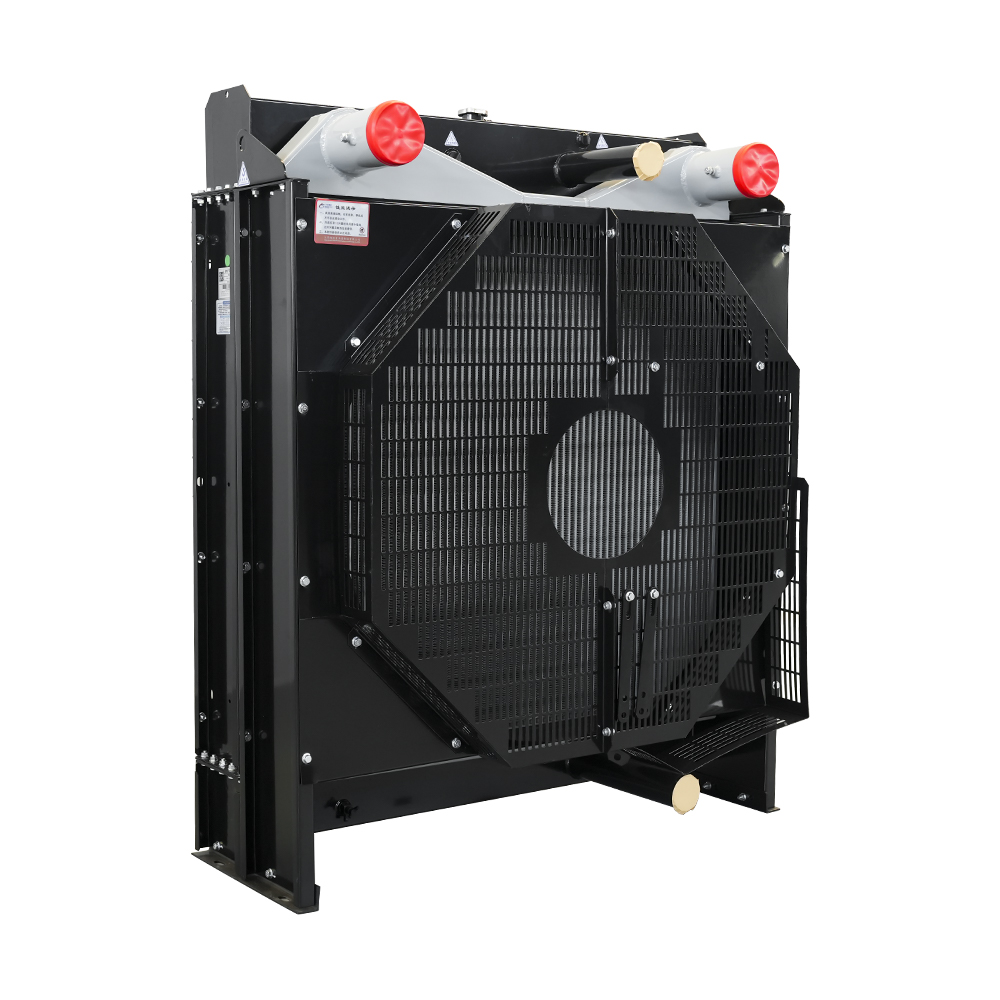

Cummini Generator Radiator est summus effectus refrigerandi ratio machinata pro Cummins Diesel generans operantem in industria, commercial, marinum et subitis applicationibus stolis ponit. Offerimus tam aluminium quam nucleum radiatorum aeris, permittentes clientibus ut solutionem optimam eligere pro refrigeratione, diuturnitate et requisitis praevisionis specificae.

Nec. Exemplar Institutionem Dimensiones
Diameter* Centrum Altitudo 		Radiator Dimensiones
Altitudo * Latitudo * Crassitudo 		Aquae
capacitas
L） 		Calor
Dissipatio
Area
M²）
1 4BT3.9-G2 Φ515*415 778*620*199 7.4 19.1
2 4BTA Φ560*459mm 932*766*457*345mm 12.4 18.3
3 4BTA3.9-G13 Ante viam 650*1026*225mm 15.6 26.9
4 4BTA-D Motor coegi 972*766*582MM 13.5 31.7
5 6BTA Φ640*489mm 992*766*515*440mm 13.2 19.9
6 6BTAA Φ645*489mm 992*816*589* 450mm 16.1 21.4
7 6BTAA-D Motor coegi 1175*1006*744mm 27.5 32.7
8 6BTA-D Motor coegi 1095*906*677mm 24.5 32.7
9 6CTA Φ690*559mm 1153*800*405*370mm 17.1 31.9
10 6CTAA φ810*622mm 1215*956*629mm 31 38.6
11 6CTAA8.3-G9-D Motor coegi 1395*1056*744mm 32.4 74.9
12 6CTA-D Motor coegi 1095*906*677mm 25.8 45.8
13 6LTAA Φ792*621mm 1215*956*559*379mm 31 38.6
14 6LTAA9.5-G1 Φ850*691mm 1395* 1056*639*434mm 32.4 74.9
15 6LTAA9.5-G1-D Motor coegi 1395*1056*744mm 34 93.3
16 6ZTAA13-G3 φ1000*676mm 1341*1110*418mm 21.1 67.9
17 6ZTAA13-G4 Φ1040*793mm 1665* 1256* 545* 380mm 48.3 150.8
18 6ZTAA13-G4-D Motor coegi 1575*1286*1135mm 48.4 152
19 F2.8-G3 φ520*400mm 788*626*239mm 8.8 17.8
20 HC2627-G-D Motor coegi 1845*1577*715mm 60.1 138.8
21 K50N-G10-D Motor coegi 2674*2619*1414mm 306.7 464.5
22 KTA19-G4 Φ1100*774mm 1573* 1256*737*464mm 42 57.3
23 KTA19-G8 Φ1100*774mm 1590* 1255*736*465mm 45.4 99.3
24 KTA19-P750 Φ1100*774mm 1590* 1256*737mm 49.9 152
25 KTA19-P840 Φ1280*951mm 1895* 1456*980*578mm 104.3 138.8
26 KTA38-G(G2) Φ1360*991mm 1975*1756*672*422mm 84.7 129.5
27 KTA38-G2A Φ1556*991mm 1970*1756*579mm 88.3 179.7
28 KTA38-G5 Φ1556*991mm 1997*1756*630mm 88.3 179.7
29 KTA38-G9 Φ1556*991mm 2075*1756*672572mm 93.6 233.9
30 KTA50-G12 Φ1740*1120mm 2249*2169*1134*686mm 213.1 307.8
31 KTA50-G15-P Φ1740*1170mm 2344*2219*1114mm 218.4 409.6
32 KTA50-G16A Φ1840*1270mm 2534*2269*1184*734mm 280.6 378
33 KTA50-G3 Φ1570*1075mm 2176*2019*767662mm 100 220.1
34 KTA50-G3-D quattuor motores 2164*2019*848mm 97.5 311.4
35 KTA50-G8 Φ1556*1110mm 2240*2115*894*840mm 238.1 284.3
36 KTA50-G8-D Motor coegi 2238*2243*1025mm 237.9 307.8
37 KTA50-GS8-P Φ1630*1030mm 2144*2215*1159mm 200.7 290.9
38 KTAA19-G5 Φ1120*921mm 1850*1450*640mm 66.3 212.4
39 KTAA19-G7 Φ1150*815mm 1799*1406*806*540mm 74.5 123.7
40 KTAA19-G7-8 Φ1150*815mm 1773*1520*822*422mm 81.8 122.6
41 KTAA19-P818 φ1150*861mm 1820*1406*806*405mm 71.4 123.7
42 KTAA38-G9A Φ1560*1174mm 2294*2119*763*511mm 103.2 316.5
43 MTAAII-G3 Φ910*650mm 1324*1106*624*529mm 39.4 69.5
44 MTAII-G2A Φ900*625mm 1280*1006*606*441mm 31.1 35.8
45 N855-DM- Φ950*761mm 1635*1106*797*577mm 65.1 78.8
46 NTA855-G1 Φ850*650mm 1299*1006* 586*336mm 30 36.1
47 NTA855-G1A Φ900*656mm 1299*1006* 586*336mm 30 36.1
48 NTA855-G2A Φ900*656mm 1300*1006*586431mm 30 36.1
49 NTA855-G4 Φ900*650mm 1299*1006* 586*431mm 30.9 45.1
50 NTA855-P500 Φ950*656mm 1285* 1056* 586* 336mm 36.2 64.6
51 NTAA855-G7 Φ950*650mm 1324*1106*614*529mm 41.7 68
52 NTAA855-G7A
53 NTAA855-G7A-D φ930*716mm 1475* 1156*1090mm 41.3 103.6
54 QSB7-G5 Φ900*646mm 1340*1036*779*680mm 32.2 73
55 QSK19-G11 Φ1140*951mm 1880*1536*650*577mm 70.7 176.4
56 QSK19-G4 Φ1140*951mm 1880*1536*650*577mm 67.5 145.1
57 QSK23-G3 φ1350*961mm 1925*1576*876*525mm 65.2 157.5
58 QSK50-G17 Φ1840*1370mm 2695*2420*1000*920mm 140.8 425.4
59 QSK60-G23-P Φ2020*1390mm 2714*2619*1192mm 306.7 464.5
60 QSK60-G4-P Φ2020*1390mm 2714*2619*1205mm 306.7 464.5
61 QSK60-G8-P Φ2020*1390mm 2714*2619*1205mm 315.5 570.7
62 QSL8.9-G4 φ800*691mm 1395* 1126* 710* 450mm 34 78.8
63 QSL9-G7 Φ900*646mm 1340*1190*630mm 40.2 88.7
64 QSMII-G2 Φ944*686mm 1375*1106*504mm 41.7 68
65 QSMII-G2-D φ930*649mm 1348*1190*1028mm 32.7 79.2
66 QSMII-G4 φ944*686mm 1375*1106*624*404mm 43.7 90.1
67 QSMII-G6 φ944*686mm 1375*1106*624*404mm 45.4 110.7
68 QSNT-G3 Φ945*656mm 1320*1106*614*404mm 39.4 69.5
69 QSNT-G4X Φ945*656mm 1515*1256*625*415mm 53 139.8
70 QST30-G4 φ1570*1070mm 2144*1919*974*684mm 166.9 203
71 QSX15-G8 φ1155*866mm 1645*1426*700*505mm 61.1 115.3
72 QSZ13-G2 Φ1040*793mm 1665* 1255* 610* 505mm 46.9 129.5
73 QSZ13-G3 φ1040*793mm 1665* 1256* 610* 380mm 44.6 106.5
74 QSZ13-G310 φ1150*811mm 1665* 1276* 680* 450mm 46.9 129.5
75 QSZ13-G7 φ1150*811mm 1665* 1276* 680* 450mm 44.6 106.5
76 VTA28-G5 Φ1260*961mm 1925*1706*567mm 72 175.3
77 VTA28-G6 Φ1460*961mm 1925*1706*812mm 72 175.3
78 WS---1000KW-000211000YZ Calor exchanger Calor exchanger Calor exchanger Calor exchanger
79 WS---100KW--000211000 Motor coegi 1447*1414*1081mm core emit core emit
80 WS--180KW-6CTA8.3-002035 Horizontalis aquae piscinae 1159*2120*1300mm 40.2 core emit
81 ERAT---610KW-KTA19-G8A-0002 Horizontalis aquae piscinae 1510*2442*1910mm Horizontalis aquae piscinae core emit
82 WS---K50N-G10-000211000 Motor coegi 2120*3706*2055mm core emit core emit
83 WS---KT38-GA-000211000 Horizontalis aquae piscinae 1510*2445*2065mm Horizontalis aquae piscinae Horizontalis aquae piscinae
84 WS---KTA38-G5-000211000YZ Horizontalis aquae piscinae 1515*3460*2065mm core emit core emit
85 WS---KTA50-G16A-000211000 Horizontalis aquae piscinae 1588*5670*2186mm core emit core emit
86 WS---KTA50-G3-01031100JZX Horizontalis aquae piscinae 1490*3613*2056mm core emit core emit
87 GK---KTA19-P600-002120100 Testa et tubus exchanger 510*820*35mm 16 5.2
88 GK---KTA38-P830-00222100 Testa et tubus exchanger 515*1240* 350mm 20 8
89 GK---NTA855-P300-00102010 Testa et tubus exchanger 570*605* 365mm 10 2.2
90 HBJ---1090KW-KTA38-G9-211 523*309mm 1790*1730*580mm 111 15
91 HBJ---1090KW-KTA38-G9-211 741*462mm 1790* 1500*580mm 95 15
92 HBJ---1100KW-QSK38-G5-211 875*480mm 2110*2010*500mm Calor exchanger Calor exchanger
93 HBJ---1300KW-KTA50-G3-011 Calor exchanger 1790*1750*580mm Calor exchanger Calor exchanger
94 HBJ---150KW-6CTA-00010000 Calor exchanger 1200*970*530mm Calor exchanger Calor exchanger
95 HBJ---2000KW-QSK60-G8-211 Calor exchanger 2110*2010*642mm 136 core emit
96 HBJ---200KW-NTA855-G2A-00 Calor exchanger 1110*850*480mm Calor exchanger Calor exchanger
97 HBJ---400KW-KTA19-G8-0001 Calor exchanger 1500*1340*5351mm Calor exchanger Calor exchanger
98 HBJ---400KW-KTA19-P600-00 Calor exchanger 1500*1340*535mm Calor exchanger Calor exchanger
99 HBJ---400KW-KTA19-P680-00 Calor exchanger 1500*1340*535mm Calor exchanger Calor exchanger
100 HBJ---610KW-KTA19-G8A-000 Calor exchanger 1540*1200*624mm Calor exchanger Calor exchanger
101 HBJ---KT38-GA-211011000 Calor exchanger 1790* 1500*580mm Calor exchanger Calor exchanger
102 HBJ---KTA38-G5-21101100 Calor exchanger 1790* 1500*580mm 95 15
103 HBJ---KTA38-G9E-211011000 730*525mm 1860*1830*675mm 163 15㎡
104 HBJ---KTA50-G16A-21101100 Calor exchanger 1860*1830*745mm Calor exchanger Calor exchanger
105 HBJ---KTA50-G7E-211011000 730*525mm 1860*1830*748mm 171 26.3
106 HBJ---KTA50-GS8-211011000 Calor exchanger 1860*1830*675mm Calor exchanger Calor exchanger
107 HGK---1000KW-KTA38-G5-100 Calor exchanger 1850*1750*600mm Calor exchanger Calor exchanger
108 HGPBJ---450KW-QSX15-G8-10 Calor exchanger 1600* 1200*635mm Calor exchanger Calor exchanger
109 HGPBJ---6LTAA8.9-10004000 Φ1*1mm 1550* 1070* 5351mm 70 15
110 HGPBJ---KTAA19-P673-10004 Calor exchanger 1710*1480* 555mm Calor exchanger Calor exchanger
111 HGPBJ---KTAA19-P818-10004 326*590mm 1710*1480* 555mm 99.5 4
112 HGPBJ---QSM11-G1-10004010 Calor exchanger 1500*1200*500mm Calor exchanger Calor exchanger
113 HGPBJ---QSNT-G3-100040100 414* 416mm 1681*1480*545mm 89 4
114 HGPGK--180KW-6BTAA-01130 Calor exchanger 1354*1000* 475mm Calor exchanger Calor exchanger
115 HSKBJ---300KW-QSL8.9-2010 Calor exchanger 1640*1200*560mm Calor exchanger Calor exchanger
116 HSKBJ---500KW-QSX15-G8-20 Calor exchanger 1611* 1500*714mm 100 30

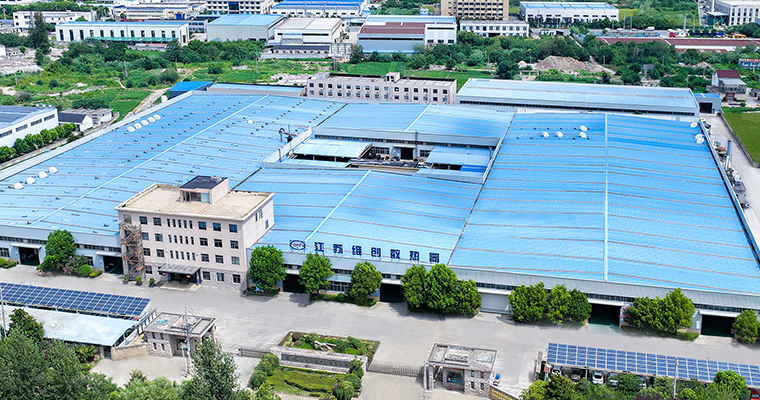

Jiangsu Weichuang Radiator Manufacturing Co., Ltd.
De Weichuang

Ab initiis nostris in fabrica generantis et radiatoris anno 2003, nunc negotium nostrum ad plus quam 30 nationes cum manu laboris plus quam 250 conductorum expandimus. Ut constituta R&D et fabrica enterprise pro radiatoribus generantis, OEM Apta Cummins Generator Radiatores Fabri et Apta Cummins Generator Radiatores Fornitores, duas bases productionis normatas super 60,000 metra quadrata operatur. Cum technica turma 50+ core ingeniorum, systema industriale comprehensivum super R&D, productionem, et probationem aedificavimus, capacitatem productionis annuam 150,000 unitatum/parum assequentes. Ut Apta Cummins Generator Radiatores Fabricam, Professionalis apparatus fabricandi radiatores laminae metallicae provectus ad qualitatem productorum, efficientiam altam et cautionem traditionis.

Nuntius Responsum

Nuntii et Informatio

Cummins Generator Radiators: Full Series Coverage

Nos fabricamus et suppeditamus radiatores subtilitatis machinatorum for omnes major Cummins genset engine series — ex pacto B Series unitates ad suggesta megawatt-classis QSK. Quisque radiator designatus est ad aequationem specificae caloris reiectionis profanorum, in circuitu cum configuratione coolantem, et requisita institutionis exemplar machinae scopo. Infra seriem-per-seriem inspiciendum est ut adiuvet te solutionem refrigerandi rectam cognoscere.

B Series & C Series - 17 ad 275 kVA

Series B (4BT, 4BTA, 6BTA, 6BTAA) et C series (6CTA, 6CTAA) inter latissime explicant Cumminum machinas in gensets mercatorum. B Series radiators typice utuntur machinam conscendit, cingulum agitatae figurarum fan aluminium vel nucleos aeris. C Series engines introducunt turbocharged aftercooling, radiators cum requirens integrated crimen aeris frigidior Thracam (CAC) sectiones aftercooler vel separatum core.

Claves selectae factores huius amplitudinis includunt compatibilitatem diametri ventilabrum, summae piscinae et lacus connexionis quantitatis, et utrum institutio labro an conopeo inclusa sit aperta. Motor-actus (remotus) variantes praesto sunt pro instrumentis tectis vel continentis ubi profusio airflow debet a sinu machinis separari.

Exempla operta: 4BT3.9-G2, 4BTA, 4BTA3.9-G13, 6BTA, 6BTAA, 6CTA, 6CTAA, 6CTAA8.3-G9, et variantes motoriis.

F Series & Z Series - Foedus & Modular Platforms

The F Series (F2.8) ordinatur ad levis officiorum et rentalis applicationes ubi compacto vestigium et celeri instruere potiores. Sarcina radiator eius dimensiva coacta est, nucleum accuratum faciens et integumento apta critica ad damna recirculation evitanda.

The Z Series (6ZTAA13) machinarum potentia 400-550 kVA gensets et pluma altior caloris rejectionis onera quae exigunt. maior-forma radiator metretas extenso pinna profundum . Ambae figurae ventilationis et motoris agitatae praesto sunt. 6ZTAA13-G4-D radiator motoris agitator, exempli gratia, lineamenta 1575×1286×1135mm involucrum ac 152 m² calor dissipationis regio .

Exempla operta: F2.8-G3, 6ZTAA13-G3, 6ZTAA13-G4, 6ZTAA13-G4-D.

L Series — 6LTAA9.5 (275-400 kVA)

Series machinae 6LTAA9.5 notat a turbocharged et aftercooled configurationem faciens a dual-circuitu refrigerationem demanda : iaccam aquae refrigerationis et temperaturae separatum crimen aeris circuii. Radiatores ad hanc seriem nucleum sufficientem aream pro utroque circuitu tradere debent sine angustiis involucro nimis ascendente.

6LTAA9.5-G1 radiator fan agitatus attingit dissipationem caloris areae of 74.9 m² dum motrices agitatae versionem extendit 93.3 m² - idoneam ad altitudinem ambientium vel altitude-deratae officinae.

Exempla operta: 6LTAA, 6LTAA9.5-G1, 6LTAA9.5-G1-D.

N Series — NTA855 & NTAA855 (350-500 kVA)

The N Series (NTA855, NTAA855) machinae operae diuturnae probantur cum voluminibus substantialibus coolant fluunt. Eorum radiators sunt propria magna diametri ventilabrum (Φ850-Φ950mm) et capacitas aquae altae (30-65 L) essentialis ad scelerisque stabilis dispositionem sub continua prima potestate officiorum.

Ad applicationes quaerunt remotam institutionem - sicut gensets seu generans receptacula continens - configurationes aquae motorias horizontales (WS-type) praesto sunt, permittens radiatorem e machina ad decem metrorum collocari. Fistula inspectionis et statice capitis diligenter iniri debet manere intra engine scriptor coolant sentinam pressura facultatem.

Exempla operta: N855-DM, NTA855-G1/G1A/G2A/G4/P500, NTAA855-G7/G7A/G7A-D.

KTA19 Series - 400-700 kVA

Machinae KTA19 et KTAA19 sunt summus output turbocharged aftercooled unitatum significantes Intercooler onerat æstus exactione dicata procuratio. Fan-acti radiatores in hac serie utuntur diametri ventilabro usque ad Φ1150mm et areae dissipationis caloris e vndique perveniunt. 57.3 m² (KTA19-G4) ad 212.4 m² (KTAA19-G5) pro variantibus.

Ad primam potestatem applicationes sentinam (KTA19-P600 ad P840), genus remotum et lacus radiatorum aquarum horizontalium congregationes flexibilitatem institutionem praebent, salva capacitate plena scelerisque. Caloris commutatoris (testa-et-tuba) optiones etiam promptae sunt ad systemata refrigerationis clausa.

Exempla operta: KTA19-G4/G8/P750/P840, KTAA19-G5/G7/G7-8/P818, plus WS et HBJ-type variantes remotiores.

KTA38 Series - 800-1400 kVA

Series KTA38 unum e Cummins repraesentat 'provocationes maximas flagitat in sub-megawatt range. Totalis calor rejectio ad plenam onus accedere potest 800-1000 kW congregationes radiatorum requirunt cum diametro ventilabrum usque ad Φ1556mm et arearum dissipationem caloris perveniens 233.9 m² (KTA38-G9) .

Ambae figurae ventilationis et motoris agitatae instruxerant. Data enim centra, fodienda situs, oleum & facultas gasi ubi gensets intus instituuntur; remotis horizontalis aquae-radiator tristique (ERAT genus) et laminae genus caloris nummularii (HBJ-type) facultatem praebent thermarum quae opus sunt flexibilibus remotis sedentibus - usque ad multi-metri separationem ab machinam.

Exempla operta: KTA38-G(G2)/G2A/G5/G9, KTAA38-G9A, plus WS et HBJ variantes remoti et caloris commutatoris.

QSK Series - 1000 kW ad 4500 kW

suggestum QSK (QSK19, QSK23, QSK50, QSK60) potestates missionis criticae, summae capacitatis gensets in nosocomiis, centra data, fodienda plantarum et suggesta remote. Hac scala, totalis calor recusatio excedat 2-4 MW per unitas , refrigerandi ratio designandi exercitatio machinalis in project-gradu.

Radiatores pro machinas QSK maximae sunt in portfolio Cummins nostris. Radiator QSK60-G8-P, exempli gratia, lineamenta a 2714×2619×1205mm involucrum, 315.5 L aqua capacitatis, et area dissipationis 570.7 m² - unum ex maxime intensiva unum radiators in generante applicationes posuit. Quattuor motricium coegi configurationes praesto sunt ad maximum airfluvium et constantiam redundantiam.

Exempla operta: QSK19-G4/G11, QSK23-G3, QSK50-G17, QSK60-G4-P/G8-P/G23-P, QST30-G4, K50N-G10.

QSB / QSL / QSX / QSZ Series — QS Rostra (30-900 kVA)

QS (Quantum System) suggestum late spectrum potentiae per machinas electronice gubernatas, emissiones faciliores machinas tegit. Eorum integrata esca et systemata scelerisque procurationes saepe consequuntur superiorem causam temperaturas aeris et temperaturas magis accurate coolant praedecessoribus mechanicis comparati.

  • QSB7-G5; Fan diameter Φ900mm, 73 m² calor dissipationis area - apta CC kVA classis gensets.
  • QSL8.9-G4 / QSL9-G7; Proin rhoncus L9 tribunal; et bene ventilatae et motoriae agitatae cum area 78.8-88.7 m² dissipationis.
  • QSX15-G8: Summus output X15 suggestum; 115.3 m² area dissipatio, ventilabrum Φ1155mm.
  • QSZ13-G2/G3/G7/G310; Z13 suggestum velamentum 450-600 kVA; calor dissipationis area 106.5-129.5 m².

All QS-series radiators are designed with core fin specifications optimized for the engine's certified coolant temperatus fines praestans obsequium sine aestimatae ambientium conditionibus servatur.

VTA Series - V-Configurationis High-Output (500-1200 kVA)

Architectura VTA28 machinae V impedimentum specificae refrigerationis requisita distributio creat. Radiators debet eripere commensus influunt per utrumque cylindricum ripas scelerisque ne iniquitate. VTA28-G5 et VTA28-G6 radiatores plumarum diametri ventilabrum Φ1260-Φ1460mm et caloris dissipationis areas of 175.3 m² , nuclei profundis cum aqua et oleo frigidiore caloris compositiones tunicas tractandi proprias magnarum machinarum V onerarias.

Exempla operta: VTA28-G5, VTA28-G6.

MTA Series - Marine Cooling Solutions

Gentestae marinae in MTA (Marine Turbocharged Aftercooled) machinamenta operantur in ambitibus ubi radiatores aerei refrigerati traditionales impracticales sunt. Nostri MTA radiators ordinantur ut iaccam aqua calor nummulariorum refrigeratum marinis vel rudis aquae cursus. Optiones materiales includunt fasciculos cupronickel fistulae ad resistentiam aquae salts et elementa Titanium ad ambitus littoris infestus.

Rectae aquae marinis fluunt rate et colum prehensio necessariae sunt ad superficies transferendi calorem mundum conservare. Omnia MTA caloris negotiatoris consilia parere cum valvae thermostaticae requisitis opus habent Ne infectum positis et condensatione in low-onus operationem.

Exempla operta: MTAII-G2A, MTAAII-G3.

QSNT Series — Naturalis Gas & Bi-Fuel Platforms

Gas-fueled Cummins gensets in QSNT suggestu exhibent a alia combustionis scelerisque profile comparari pellentesque versos, typice currentes ad superiores observationes aeris temperaturae. QSNT radiators incorporate humilis-temperies aftercooling sectiones supprimere, pulsare, servata potentia output per varias escas compositiones.

QSNT-G3 et QSNT-G4X unitates diametros ventilat usque ad Φ945mm cum area dissipationis caloris 69.5-139.8 m² contegunt. Patinae remotae genus caloris commutatoris (HGPBJ) variantes praesto sunt officinae ubi radiator e clausura genset decoqui debet.

Exempla operta: QSNT-G3, QSNT-G4X, QSNT-G3 HGPBJ genus remotum.

Quomodo eligere Radiator Cummins ius

Ad rectam radiator speciem pro incepto tuo confirmandam, sequentia indicia desiderantur:

  1. Engine exemplar ac genset exemplar numerus (e.g., KTA19-G8, QSX15-G8) — haec determinat nucleum caloris rejectionem datam et dimensiones connexionis.
  2. Genus institutionem — skid apertus, conopeum inclusum, continens vel remotum situs — determinat an figuratio flabello agitatae an motorio agitatae applicatur.
  3. Situs ambientium temperatus et altitudo - utraque factores capacitatem radiatorem afficiunt et emendam per maiorem aream nucleum vel additam vim ventilandi requirunt.
  4. Officium cyclum — prima potestas, continua, repentina standby — impacta in marginem thermarum quaeruntur in consilio.
  5. Specialis environment requisita - detectio maritimalis / salsae aquae, deserti summus temperatus, vel litus marinum - materias et superficies curatio specificat.

Nostra machina machinalis quadrigis exemplar tuum machinam referre potest contra nostram plenam datorum productionem et optimalem configurationem radiatorem commendare. Consuetudines dimensiones, nexus non normae, et OEM reposito requisita sunt omnes in nostris vexillum officium scope.
